Daloradius Installation on CentOS 7

Daloradius Installation on CentOS 7

FreeRADIUS, the open source implementation of RADIUS, an IETF protocol for AAA (Authorisation, Authentication, and Accounting).



Disable SELinux

# setenforce 0

Edit fileĀ  /etc/selinux/config and set:

SELINUX=disabled



Install MariaDB/MySQL

EditĀ MariaDB.repo file:

# vi /etc/yum.repos.d/MariaDB.repo
[mariadb]
name=MariaDB
baseurl=http://yum.mariadb.org/10.3.9/centos7-amd64/
gpgkey=https://yum.mariadb.org/RPM-GPG-KEY-MariaDB
gpgcheck=1

Install MariaDB and start services:

# yum update
# yum install mariadb-server mariadb
# yum -y install freeradius freeradius-utils freeradius-mysql httpd httpd-devel

# systemctl start httpd

# systemctl enable httpd
# systemctl enable radiusd.service

Start and enable MySQL service

# systemctl start mariadb
# systemctl enable mariadb



Improve the security of your MariaDB and set a password for root account

# mysql_secure_installation

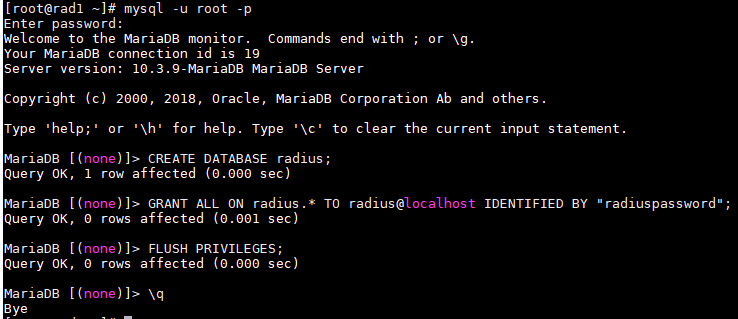

# mysql -u root -p

CREATE DATABASE radius;

GRANT ALL ON radius.* TO [email protected] IDENTIFIED BY "radiuspassword";

FLUSH PRIVILEGES;

\q

CREATE DATABASE radius



Import SQL Database and Create a Soft Link

# mysql -u root -p radius < /etc/raddb/mods-config/sql/main/mysql/schema.sql
# ln -s /etc/raddb/mods-available/sql /etc/raddb/mods-enabled/



Install PHP

# yum -y install php mod_php php-cli php-mysqlnd php-devel php-gd php-mcrypt php-mbstring php-xml php-pear

# yum -y install php-dba
# pear install pear
# pear install --force DB

# apachectl restart



Configure Database Connection

# vi /etc/raddb/mods-available/sql

Set:
sql {
driver = “rlm_sql_mysql”
dialect = “mysql”

server = “localhost”
port = 3306
login = “radius”
password = “radiuspassword”
radius_db = “radius”
read_clients = yes
client_table = “nas”

# ln -sf /etc/raddb/mods-available/sql /etc/raddb/mods-enabled/
# chgrp -h radiusd /etc/raddb/mods-enabled/sql

Installing Daloradius GUI

# cd
# wget https://github.com/lirantal/daloradius/archive/master.zip
# unzip master.zip
# rm master.zip
# mv daloradius-master/ daloradius
# cd daloradius



Import Daloradius MySQL

# mysql -u root -p radius < contrib/db/fr2-mysql-daloradius-and-freeradius.sql
# mysql -u root -p radius < contrib/db/mysql-daloradius.sql
# cd ..
# mv daloradius /var/www/html


# chown -R apache:apache /var/www/html/daloradius/
# chmod 664 /var/www/html/daloradius/library/daloradius.conf.php



Change MySQL Configuration

# vi /var/www/html/daloradius/library/daloradius.conf.php

CONFIG_DB_USER
CONFIG_DB_PASS
CONFIG_DB_NAME



Open FirewallD Ports

# firewall-cmd --zone=public --add-service=radius --permanent
# firewall-cmd --permanent --zone=public --add-rich-rule=' rule family="ipv4" source address="Your_IP" port protocol="tcp" port="80" accept'
# firewall-cmd --reload

Restart services

# systemctl restart radiusd.service
# systemctl restart mariadb.service
# systemctl restart httpd

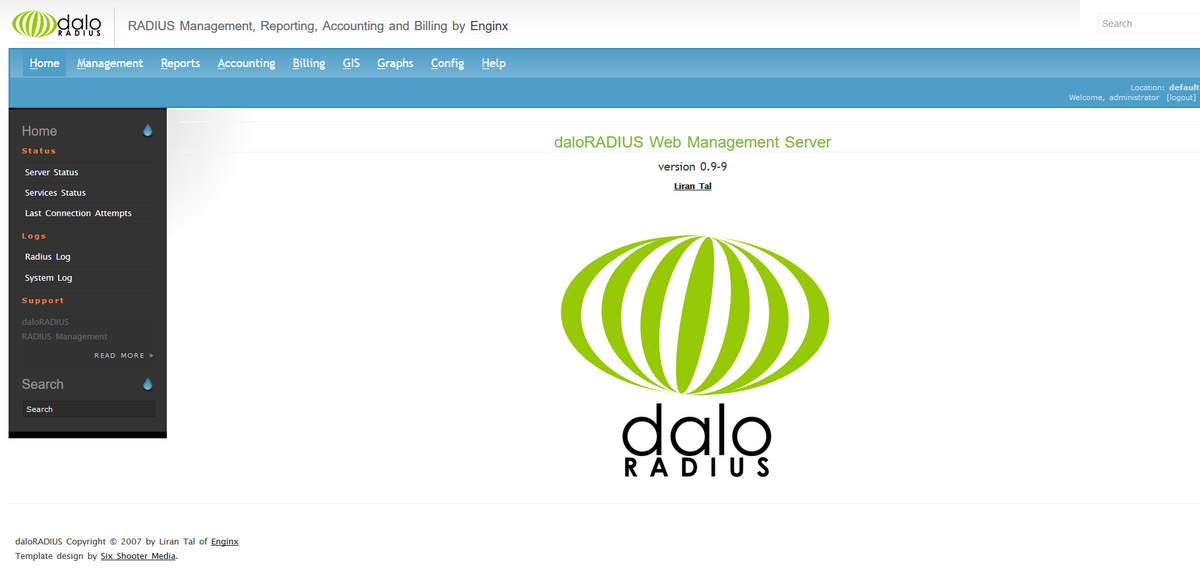

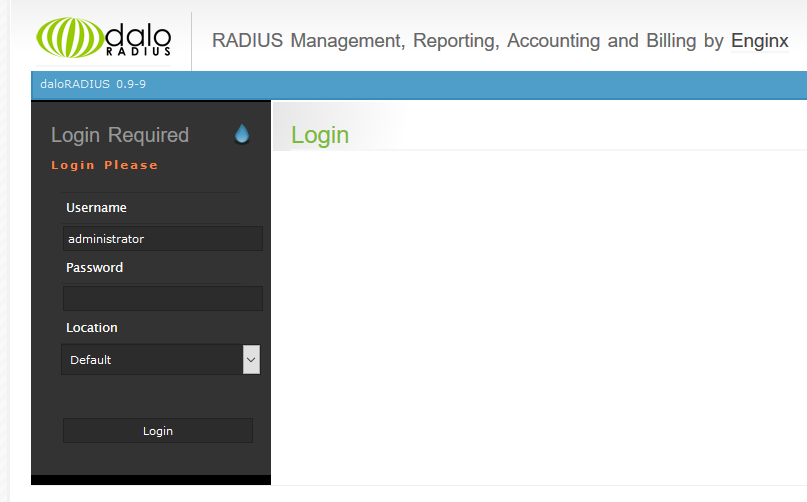

Access the web interface

http://FQDN_OF_SERVER/daloradius/login.php

User: administrator
Pass: radius
